4 Multi Zone Digital Signage Layouts: Operators' WCAG Checklist
Multi-zone digital signage splits one screen into independent content zones, each running its own playlist, feed, or widget. The rule that governs every good layout is hierarchy: pick one hero zone that carries your main message, then keep supporting zones quieter so they inform without competing. Multi-zone works best where viewers linger, like lobbies, gyms, or waiting rooms, and struggles where they’re moving fast past the screen.
TL;DR:
Most multi-zone layouts should have no more than four to eight zones to prevent attention fragmentation and maintain message clarity.
Layout patterns like L-bar, split-screen, picture-in-picture, and ticker are sufficient for most practical uses, with four zones being the upper limit in complexity.
Critical content must stay within a safe area, be legible from ten times the screen height, and meet contrast standards for accessibility, to ensure readability and compliance.
Use native resolution and percentage-based positioning in your design software to ensure scalable, artifact-free layouts across different screen sizes and hardware capabilities.
Build independent playlists with proper timing, prioritize urgent alerts, and run thorough field tests on actual display models before going live to avoid missed details or technical issues.
Table of Contents
What Situations Call for Multi Zone Digital Signage?
Multi-zone signage earns its complexity in specific environments. Retail floors, lobbies, transit hubs, control rooms, hospitality venues, and production floors all benefit because they mix urgent information with ambient content that doesn’t need full attention.
The right layout depends on how people move through the space, not just what you want to say.
Walking traffic (retail aisles, transit corridors): keep zones minimal, one hero message, glanceable in under two seconds.
Waiting audiences (lobbies, waiting rooms, gyms): supports more zones since dwell time is longer, ideal for a hero promotion plus a news ticker or class schedule.
Seated or stationary viewers (control rooms, break rooms): can absorb dense, persistent metadata like KPIs or weather feeds running continuously.
Assign each zone a clear job. One carries the hero message, one adds context (menu specials, wait times), and one holds persistent metadata like the clock, logo, or weather. Skip the job assignment and every zone starts fighting for the same attention.
What Are the Most Common Multi-Zone Layout Patterns?
Four patterns cover most real-world deployments, and each one solves a different attention problem.
L-bar layout. A large hero zone fills roughly 70 to 80% of the screen, wrapped by an “L” shaped strip along one or two edges for a ticker, logo, or secondary promotion. This is the most forgiving pattern for mixed foot traffic because the eye naturally lands on the dominant zone first.
Split-screen (two-up or four-up). The canvas divides into two or four equal panels. Equal attention only works when the content itself is genuinely equal in importance, like comparing two menu categories or showing parallel event schedules. Four-up layouts push the practical limit for most viewers.
Picture-in-picture (PiP). A smaller video or live feed floats over a larger background zone, often used for security feeds, sports scores, or a secondary promotion. PiP works best when the overlay is small, static in position, and never covers critical text underneath.
Ticker overlay. A thin strip, usually along the bottom, scrolls supplementary text like announcements or stock updates without disrupting the primary zone above it.
Common layout patterns generally top out around 4 to 8 practical zones depending on media complexity. Push past that and viewers stop processing any single zone, which defeats the purpose of the display.
What Design Rules Keep Multi-Zone Layouts Readable?
Hierarchy has to show up visually, not just conceptually. Your hero zone should be the largest and most centrally positioned element, and every supporting zone should read as secondary through size, position, or muted color, not through equal-but-different treatment.
A few technical rules make or break legibility:
Keep critical content inside a conservative safe area, away from the bezel, since mounting hardware and overscan can crop edge pixels on different display models, per UBC’s signage design guidelines.
Follow the 10× screen height rule: text should be sized so it’s legible from a distance ten times the screen’s height, per WCAG-based signage guidance.
Meet WCAG 2.1 AA contrast minimums, 4.5:1 for body text and 3:1 for large text, so content holds up under glare and distance.
Avoid flashing or rapid motion faster than 3Hz, which can trigger seizures in photosensitive viewers and is flatly a compliance risk.
Caption every video that includes speech, using high-contrast text at least 32px, so sound-off viewing still communicates the message.
Prioritizing which zone gets motion and color first, rather than animating every zone equally, is one of the fastest fixes for attention fragmentation across a multi-zone layout.
Pro Tip: Accessibility fixes aren’t a compliance checkbox. Bigger text, higher contrast, and longer slide durations improve comprehension for every viewer, not just those who need accommodation.
What Technical Limits Affect Multi-Zone Screen Design?
Design at native resolution, whether that’s 1920×1080 or 3840×2160, and use percentage-based positioning inside your CMS canvas so the same layout scales cleanly across different screen sizes without artifacts, following guidance from Media La Vista’s layout design guide.
Your media player sets the real ceiling on complexity, not your imagination. A few things to check before finalizing any layout:
Simultaneous video layers. Some players, like the BrightSign XD6, handle dual 4K playback and HTML5 rendering, which supports more ambitious zone counts than budget hardware.
Sync method. High-performance players use hardware-based PTP for frame-accurate sync across video walls, while simpler software timing is fine for single-screen multi-zone layouts.

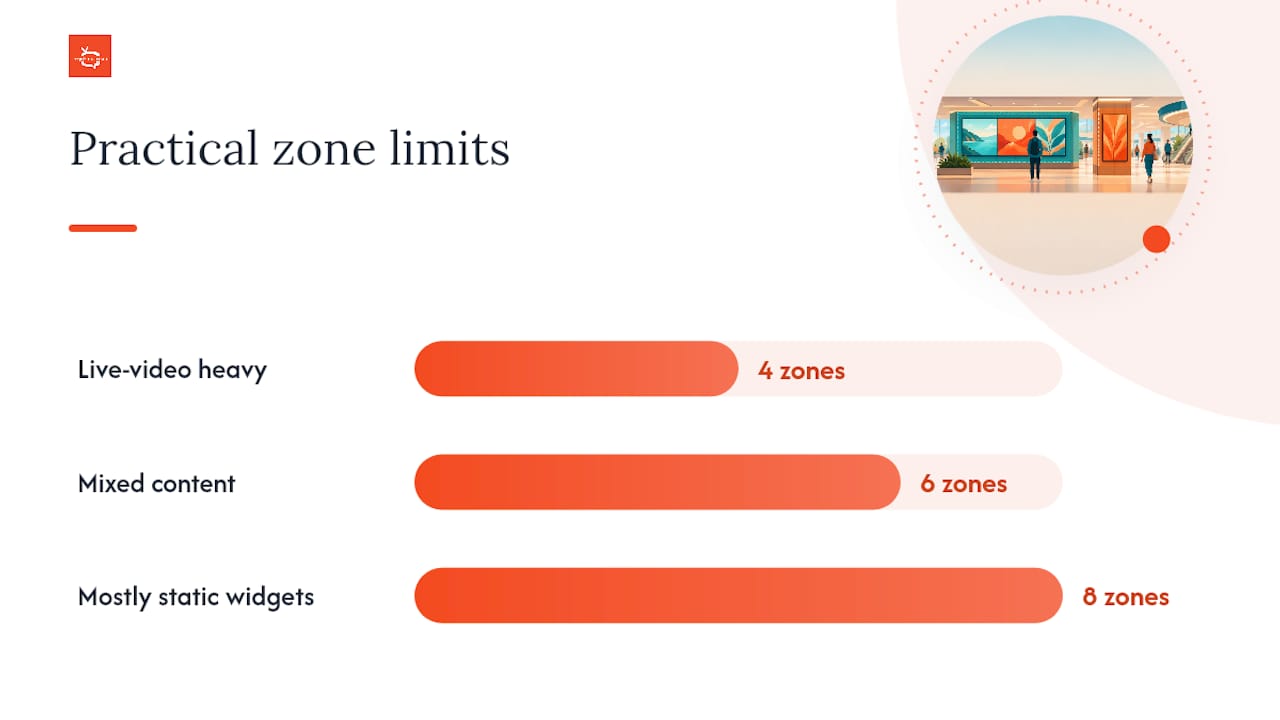

Practical zone limits. Most deployments top out at 4 to 8 zones depending on how many are running live video versus static widgets.
Codecs and caption formats. Confirm your player supports the video codec and caption format your CMS exports before you build the full layout.
How Do You Schedule Independent Playlists Across Zones?
Each zone needs its own playlist lifecycle. Your hero zone might rotate promotions every 15 seconds, while a metadata zone holding the clock and weather simply refreshes continuously in the background.
Build in priority scheduling for urgent content. A fire alarm, weather warning, or flash sale should trigger a full-screen takeover that temporarily overrides every zone, then automatically reverts once the alert clears.
For everyday content, cadence discipline matters more than clever design:
Apply the read-aloud plus 5-second rule: read all on-screen text aloud at normal pace, then add 5 seconds for a realistic minimum display duration.
Use consistent templates so new content doesn’t require rebuilding the layout each time, following practical template governance rules.
Keep version control on your playlists and test changes on a staging display before pushing to live screens.
Build a scheduling routine with rollback steps so a bad update never sits live for more than a few minutes.
What’s the Field Testing Checklist Before Going Live?
Run this checklist on the actual display model before calling any layout finished:
Measure the farthest realistic viewing position and confirm your safe area and text sizing hold up from there.
Check contrast values against WCAG minimums and physically measure text size on the installed screen, not just on your design monitor.
Read every slide’s text aloud, add 5 seconds, and confirm your scheduled duration meets or beats that number.
Verify captions appear on all speech-based video and check for any flashing faster than 3Hz.
Stress-test mixed media (video plus live data plus static graphics) simultaneously and confirm graceful fallback if one feed drops.
After launch, accessibility improvements like better contrast and longer slide durations tend to lift comprehension for every viewer, not just those who need them. Watch dwell time, repeat views, and any drop-off tied to specific zones to catch problems early.
Why Simpler Multi-Zone Layouts Usually Win
Most public screens don’t need four zones. They need one clear message and maybe a supporting strip. Save full-screen takeovers for genuine urgency, alerts, flash sales, not routine content. Cloud-based updates mean you can start simple and add zones only once you’ve proven the audience wants more.
— DKS
Get Your Multi-Zone Layout Live With Signstream
This signage platform is built for exactly the kind of layout decisions this guide walks through. It supports real-time updates pushed to multiple screens from any device, allowing a hero zone promotion to change quickly without touching hardware. Templates handle the layout groundwork, whether using an L-bar, split-screen, or ticker pattern, and analytics tools can show which zones hold attention once live.
If you manage multiple locations, playlist sharing across locations means one update reaches every screen in your network at once, no per-location rebuilding required. Start with a template inside the SignStream Network or Custom Channel plans, or read through how installation, content, and ongoing management work if you want help getting a multi-zone layout deployed correctly the first time. Screen owners running networks across several sites can also explore the ad exchange marketplace to turn quieter zones into a revenue stream through local cross-promotion.
Where to Verify Your Design Before Launch

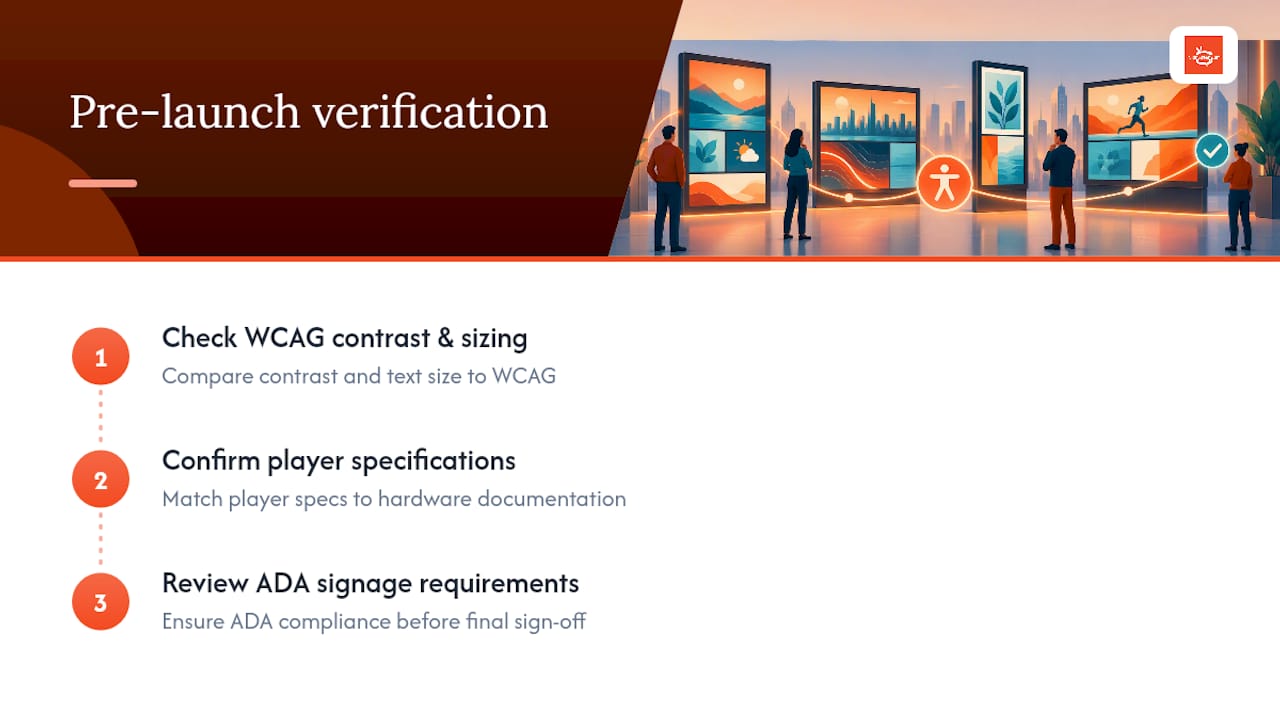

Cross-check contrast and text sizing against WCAG accessibility guidance for signage, confirm player specs against your hardware’s documentation, and review ADA signage requirements before final sign-off.
Sources
FAQ
What Is Multi-Zone Digital Signage?
Multi-zone digital signage divides a single screen into independent content areas, each running its own playlist, live feed, or widget. Common patterns include main plus ticker, L-bar, and quad layouts.
How Many Zones Should One Screen Have?
Most practical deployments work best with 4 to 8 zones depending on how much live video or complex media is running. Fewer, clearer zones consistently outperform crowded layouts for comprehension.
What Contrast Ratio Do Signage Screens Need?
Body text needs a minimum 4.5:1 contrast ratio under WCAG 2.1 AA, while large text can drop to 3:1. Testing on the actual installed screen matters more than testing on a design monitor.
Does Signstream Support Multi-Zone Layouts?
Signstream supports template-based layouts with real-time updates across unlimited screens, letting you manage hero and supporting zones from any device. Current plan pricing is listed on the Signstream pricing page.
How Long Should Each Slide Display?
Read all the on-screen text aloud at a normal pace, then add 5 seconds to get a realistic minimum duration. This test catches slides that cycle too fast for viewers with reading difficulties or limited dwell time.
